YB-LdB-1 A-0 Deck

产品介绍： 1、Type of construction2、Technical Index ClassificationProject NameTechnical IndexDamping coatingThe flammability test of the surfaceComply with IMO 2010 FTP Code Part 5The flue gas and toxicity testComply with IMO 2010 FTP Code Part 2Deck CoveringDensity≤1900kg/m3FluidityΦ≥130mmBreaking Strength≥3.5MPaCompressive Strength≥10MPaNoninflammabilityComply with IMO 2010 FTP Code Part 5Integral StructureFire ResistanceComply with IMO 2010 FTP Code Part 5Sound Insulation Index≥35dBWeight per unit area≤30.5kg/m2 3、The performance characteristics The refractory deck has good floating performance, and can effectively reduce the noise and vibration noise.This deck is applicable to sound insulation,high-demanding shipping space. 4、 Fire resistance rating The flammability of the surface:Comply with the 1974 SOLAS IMO 2010 FTP Code Part 5. 5、Recognised classification society DNV.GL 、CCS 、EC 6、Packaging and dosage (per square metre to calculate)Serial No.Mterial NamePacking SpecificationDosage1AC-JIII Refractory Deck Covering25kg/bag1.02bag2DP-SDI Damping coating20kg/barrel0.01barrel 7、Construction technology 7.1 The steel deck need be rust-protect treatment,it is no oil pollution,dust and other contaminants on the surface; 7.2 Brush the DP-SDI Damping coating on the steel deck; 7.3 After the DP-SDI Damping coating curing,Paste a circle of surrounding edge blue bar on the steel casing ; 7.4 Using pumping machine to pump or dump the deck covering which mixed on the damping,use a foam roller to remove the air bubbles in the deck covering, and promote the flow of the deck covering ; 7.5 After the deck covering curing,hook out of the surrounding edge article blue and filled with rock wool; 7.6 After construction of deck covering must be curing 12 hours,after basic dry can walk on it; 8、Note 8.1 After mixing,the deck covering must be finished laying within one hour, if manually stirring must be stirring evenly; 8.2 During the deck covering construction and curing, the environmental temperature should be in 10 ~ 35 ° C.When the temperature above 35 ℃ cooling measures should be taken;When the temperature lower 0 ℃ heat preservation measures should be taken; 8.3 The deck covering should be moistureproof, prevent bask in, and stored in a ventilation environment.Material shelf life is 6 months;

Features: The refractory deck has good floating performance, and can effectively reduce the noise and vibration noise.This deck is applicable to sound insulation,high-demanding shipping space.

Fire rating: The flammability of the surface:Comply with the 1974 SOLAS IMO 2010 FTP Code Part 5.

Parameter DNV.GL 、CCS 、EC

颜色：

注意事项：

1 After mixing,the deck covering must be finished laying within one hour, if manually stirring must be stirring evenly;

2 During the deck covering construction and curing, the environmental temperature should be in 10 ~ 35 ° C.When the temperature above 35 ℃ cooling measures should be taken;When the temperature lower 0 ℃ heat preservation measures should be taken;

3 The deck covering should be moistureproof, prevent bask in, and stored in a ventilation environment.Material shelf life is 6 months;

Order online

Details
Precautions
Features

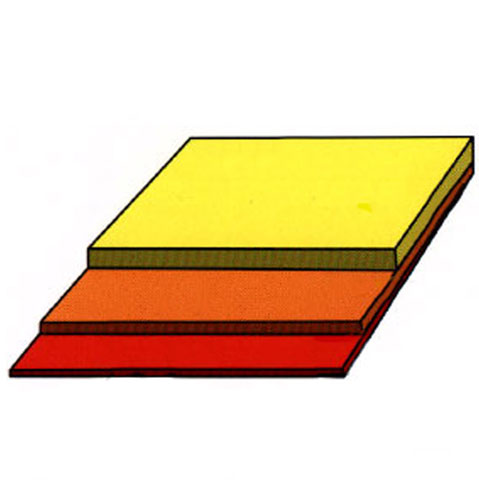

1、Type of construction


2、Technical Index

Classification	Project Name	Technical Index
Damping coating	The flammability test of the surface	Comply with IMO 2010 FTP Code Part 5
Damping coating	The flue gas and toxicity test	Comply with IMO 2010 FTP Code Part 2
Deck Covering	Density	≤1900kg/m3
	Fluidity	Φ≥130mm
	Breaking Strength	≥3.5MPa
	Compressive Strength	≥10MPa
	Noninflammability	Comply with IMO 2010 FTP Code Part 5
Integral Structure	Fire Resistance	Comply with IMO 2010 FTP Code Part 5
	Sound Insulation Index	≥35dB
	Weight per unit area	≤30.5kg/m2

3、The performance characteristics

The refractory deck has good floating performance, and can effectively reduce the noise and vibration noise.This deck is applicable to sound insulation,high-demanding shipping space.

4、 Fire resistance rating

The flammability of the surface:Comply with the 1974 SOLAS IMO 2010 FTP Code Part 5.

5、Recognised classification society

DNV.GL 、CCS 、EC

6、Packaging and dosage (per square metre to calculate)

Serial No.	Mterial Name	Packing Specification	Dosage
1	AC-JIII Refractory Deck Covering	25kg/bag	1.02bag
2	DP-SDI Damping coating	20kg/barrel	0.01barrel

7、Construction technology

7.1 The steel deck need be rust-protect treatment,it is no oil pollution,dust and other contaminants on the surface;

7.2 Brush the DP-SDI Damping coating on the steel deck;

7.3 After the DP-SDI Damping coating curing,Paste a circle of surrounding edge blue bar on the steel casing ;

7.4 Using pumping machine to pump or dump the deck covering which mixed on the damping,use a foam roller to remove the air bubbles in the deck covering, and promote the flow of the deck covering ;

7.5 After the deck covering curing,hook out of the surrounding edge article blue and filled with rock wool;

7.6 After construction of deck covering must be curing 12 hours,after basic dry can walk on it;

8、Note

8.1 After mixing,the deck covering must be finished laying within one hour, if manually stirring must be stirring evenly;

8.2 During the deck covering construction and curing, the environmental temperature should be in 10 ~ 35 ° C.When the temperature above 35 ℃ cooling measures should be taken;When the temperature lower 0 ℃ heat preservation measures should be taken;

8.3 The deck covering should be moistureproof, prevent bask in, and stored in a ventilation environment.Material shelf life is 6 months;
