The AC-JII Self-leveling Deck Covering

产品介绍： 1、Type of construction2、Technical Index Serial NumberProject NameTechnical Index1Dry Density≤800kg/m3Density≤1200kg/m32· Fluidity Φ≥130mm3Breaking Strength ≥3.5MPa4Compressive Strength≥10MPa5· Water Absorption ≤10％6· oil absorption ≤5%7Heat Conductivity Coefficient ≤1.2W/(m.K)8Impact ResistanceNo crack, no shell9Initial Setting Time≥1h10· Final Setting Time ≤8h11Vibratory TestNo crack, no shell12Organic Content≤10％13Difficult IgnitabilityComply with IMO 2010 FTP Code Part 514Smoke and ToxicityComply with IMO 2010 FTP Code Part 2 3、The performance characteristics This product is non-toxic, strong adhesion, low thermal conductivity, good liquidity, impact resistant, wear resistant, products forming smooth,sound insulation is strong, curing time steady, etc.Its construction technology is simple and apply to the deck of the vessel which is not easy to fire . 4、Fire resistance rating Difficult Ignitability: comply with 1974 SOLAS IMO 2010 FTP Code Part 5. Flue gas and toxicity: comply with 1974 SOLAS IMO 2010 FTP Code Part 2. 5、 Recognised classification society DNV.GL、CCS、EC 6、Packaging and dosage Package:13KG/bag 70bags/pallet Dosage:0.8kg/mm/m2 7、Construction technology 7.1 The steel deck need be rust-protect treatment,it is no oil pollution,dust and other contaminants on the surface. 7.2 Mix stirring evenly the interface agent and water according to the 5:1,brush or roller uniform on the steel deck; 7.3 After the interface agent curing,mix the AC - JII self-leveling deck covering and water according to the 1:0.325,use hand blender or pumping machine (suggest using pumping machine) laying the AC - JII self-leveling deck covering on the steel deck; 7.4 Control the thickness of the deck covering with a serrated scraper ; 7.5 Use a foam roller to remove the air bubbles in the deck covering, and promote the flow of the deck covering. 7.6 After construction of deck covering must be curing 12 hours, after basic dry can walk on it; 8、Note 8.1 After mixing,the deck covering must be finished laying within one hour, if manually stirring must be stirring evenly. 8.2 During the deck covering construction and curing, the environmental temperature should be in 10 ~ 35 ° C.When the temperature above 35 ℃ cooling measures should be taken;When the temperature lower 0 ℃ heat preservation measures should be taken. 8.3 The deck covering should be moistureproof, prevent bask in, and stored in a ventilation environment.Material shelf life is 6 months.

Features: This product is non-toxic, strong adhesion, low thermal conductivity, good liquidity, impact resistant, wear resistant, products forming smooth,sound insulation is strong, curing time steady, etc.Its construction technology is simple and apply to the deck of the vessel which is not easy to fire .

Fire rating: Difficult Ignitability: comply with 1974 SOLAS IMO 2010 FTP Code Part 5. Flue gas and toxicity: comply with 1974 SOLAS IMO 2010 FTP Code Part 2.

Parameter DNV.GL、CCS、EC

颜色：

注意事项：

Order online

Details
Precautions
Features

1、Type of construction


2、Technical Index

Serial Number	Project Name	Technical Index
1	Dry Density	≤800kg/m3
1	Density	≤1200kg/m3
2	· Fluidity	Φ≥130mm
3	Breaking Strength	≥3.5MPa
4	Compressive Strength	≥10MPa
5	· Water Absorption	≤10％
6	· oil absorption	≤5%
7	Heat Conductivity Coefficient	≤1.2W/(m.K)
8	Impact Resistance	No crack, no shell
9	Initial Setting Time	≥1h
10	· Final Setting Time	≤8h
11	Vibratory Test	No crack, no shell
12	Organic Content	≤10％
13	Difficult Ignitability	Comply with IMO 2010 FTP Code Part 5
14	Smoke and Toxicity	Comply with IMO 2010 FTP Code Part 2

3、The performance characteristics

This product is non-toxic, strong adhesion, low thermal conductivity, good liquidity, impact resistant, wear resistant, products forming smooth,sound insulation is strong, curing time steady, etc.Its construction technology is simple and apply to the deck of the vessel which is not easy to fire .

4、Fire resistance rating

Difficult Ignitability: comply with 1974 SOLAS IMO 2010 FTP Code Part 5.

Flue gas and toxicity: comply with 1974 SOLAS IMO 2010 FTP Code Part 2.

5、 Recognised classification society

DNV.GL、CCS、EC

6、Packaging and dosage

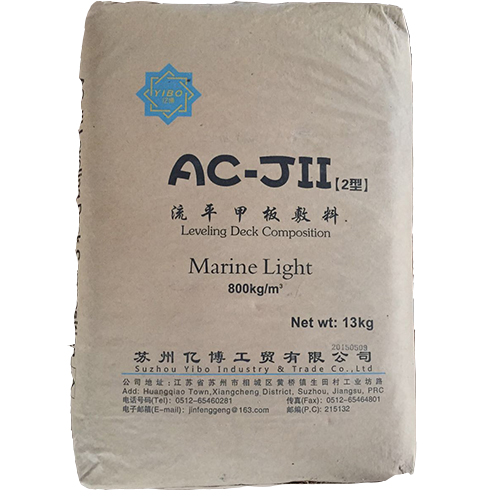

Package:13KG/bag 70bags/pallet

Dosage:0.8kg/mm/m2

7、Construction technology

7.1 The steel deck need be rust-protect treatment,it is no oil pollution,dust and other contaminants on the surface.

7.2 Mix stirring evenly the interface agent and water according to the 5:1,brush or roller uniform on the steel deck;

7.3 After the interface agent curing,mix the AC - JII self-leveling deck covering and water according to the 1:0.325,use hand blender or pumping machine (suggest using pumping machine) laying the AC - JII self-leveling deck covering on the steel deck;

7.4 Control the thickness of the deck covering with a serrated scraper ;

7.5 Use a foam roller to remove the air bubbles in the deck covering, and promote the flow of the deck covering.

7.6 After construction of deck covering must be curing 12 hours, after basic dry can walk on it;

8、Note

8.1 After mixing,the deck covering must be finished laying within one hour, if manually stirring must be stirring evenly.

8.2 During the deck covering construction and curing, the environmental temperature should be in 10 ~ 35 ° C.When the temperature above 35 ℃ cooling measures should be taken;When the temperature lower 0 ℃ heat preservation measures should be taken.

8.3 The deck covering should be moistureproof, prevent bask in, and stored in a ventilation environment.Material shelf life is 6 months.
